WellCAD 测井处理软件

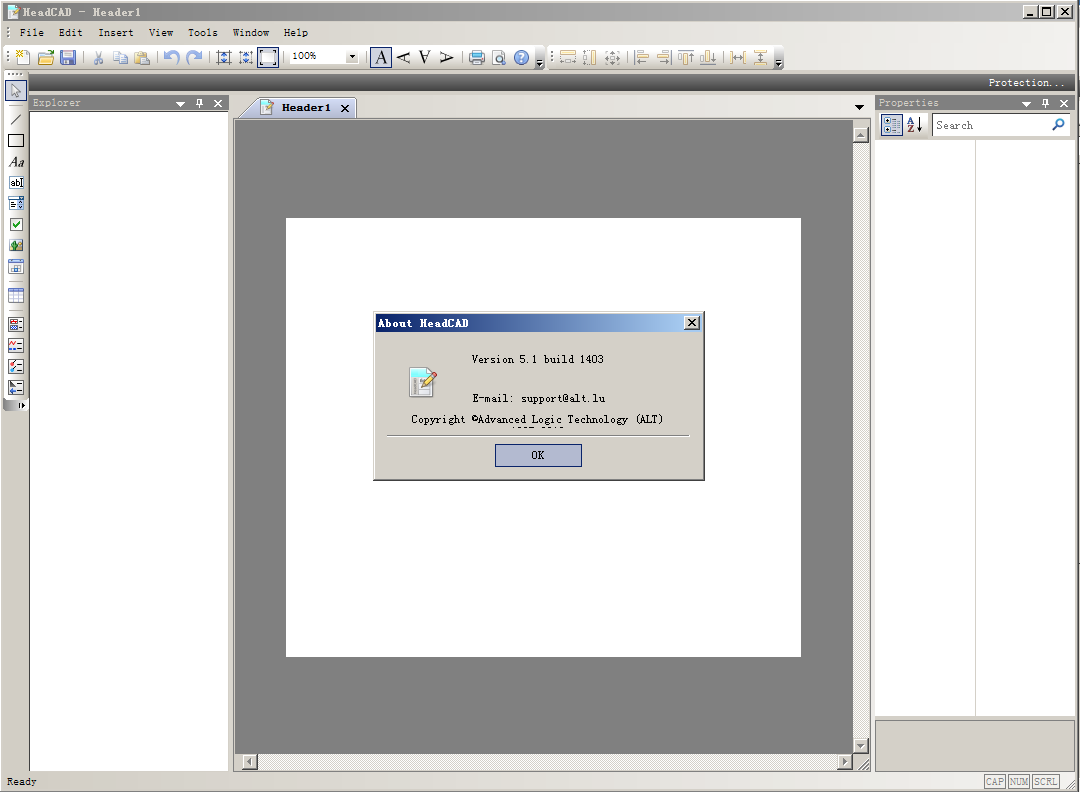

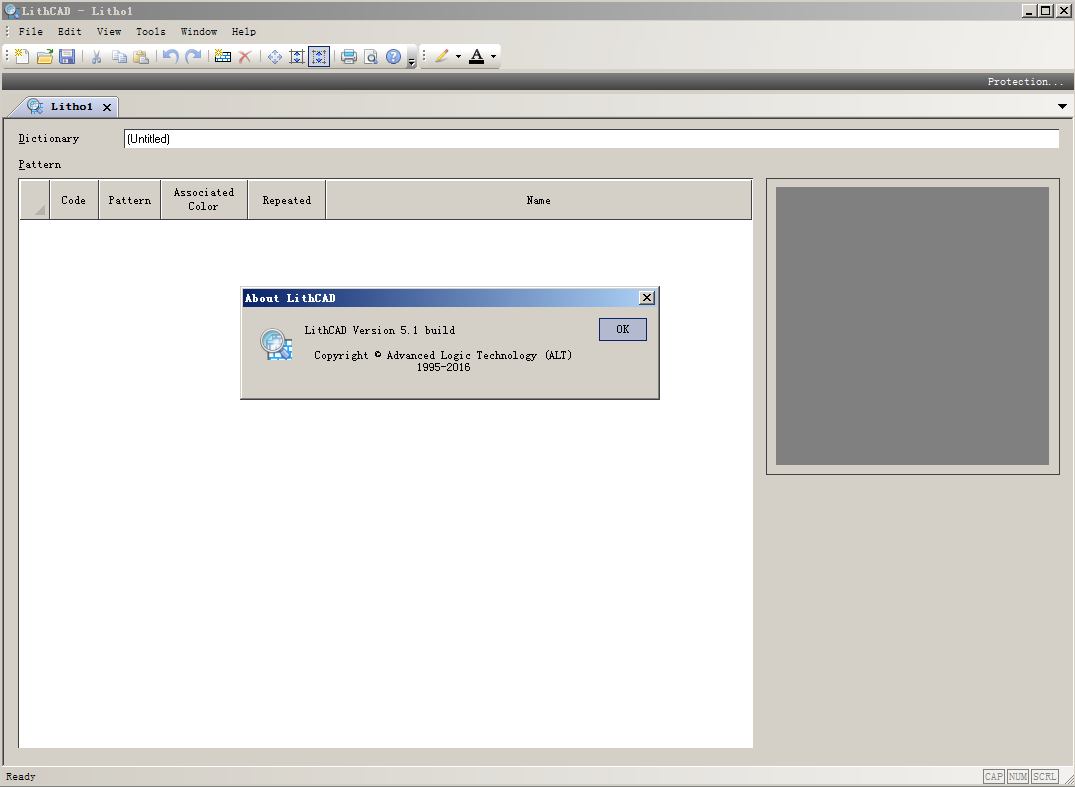

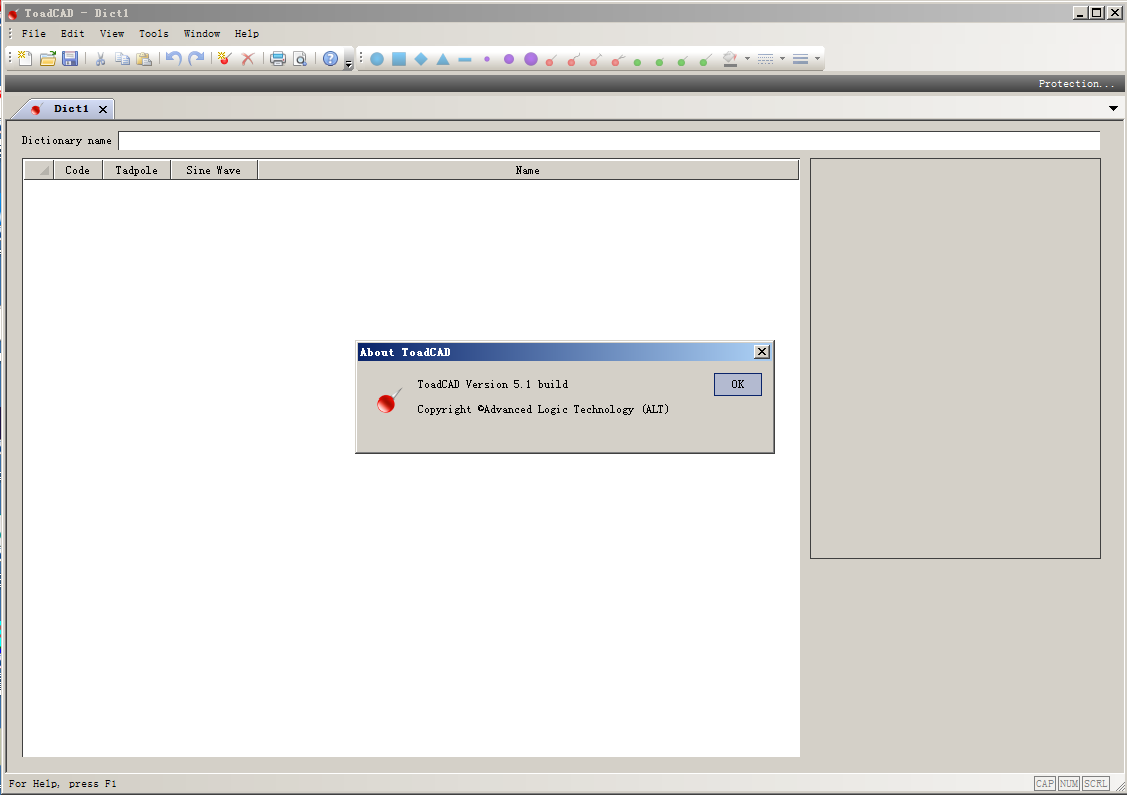

HeadCAD5 LithCAD5 ToadCAD5WellCAD在地球物理工业生产中非常有用的软件。它允许你在单一文档中结合所有的数据。它有很好的显示、编辑并分析数据的能力。使用者可以使用大量的附加模块,软件还提供了一系列的模板、表头、自定义应用模块,当然也可以很轻松的修改现有的模块或者创建自己的模块。

特点:

  • 兼容了超过30种数据格式,如LAS测井数据。
  • 标准的windows窗口界面
  • 多种深度管理模式:
  • 时间、深度、井垂直深度等
  • 软件允许使用者调整数据来校准岩芯的描述
  • 可以自定义添加岩芯物性柱状图
  • 支持二次开发
  • 根据自己的需求添加程序,支持VB、VBS、VBA软件开发

WellCAD is PC based composite log package, which combines comprehensive graphic editing mechanisms and data processing tools.

Combining technically excellent display, editing and analysis capabilities for well data, WellCAD has become the standard log composite software in the Mining, Oil&Gas and Geotechnical society and is used in a wide range of applications.
The basic module incorporates all features and tools necessary to import, edit, process and display your Well data. The software is delivered with a set Templates, Header, Dictionaries customized for specific application. You can of course easily modify existing ones or create you own.

DATA IMPORT/EXPORT
ASCII, CSV, TXT files, ASCII,
Bitmap files (*.bmp, *tif)
Many 3rd party proprietary files – contact support@alt.lu to have the latest updated list
LIS/DLIS (optional)

DATA PRESENTATION
WellCAD handles a wide range of data type from wire line data, core data, images, comments and many more. All data are numerical and can be edited in a separate spread sheet view (tabular editor) Do not hesitate to ask support@alt.lu if you can’ t find the appropriate log type to handle any well data.

DEPTH MANAGEMENT
Multiple depth management (time, depth, TVD)
Advanced depth matching tool

EDITING
Slice, shift, merge, resample, filter curves with results display alongside the original data.

COMPUTATIONS
Formula parser (curve calculator with multiple discriminators)

USER PROGRAMMING/BATCH PROCESSING
Add your own process routine and specialised task using Visual Basic and/or OLE automation.

OUTPUT
Copy/paste to any windows application
Export document as BMP/EMF
Output to any Windows-supported printer
Distribute the document with free WellCAD reader
