Intrepid Geophysics GeoModeller 三维地质建模软件

geomodellerGeomodeller是三维地质建模软件工具。为构建复杂的,稳态,三维地质模型,进行了物理建模和逆直接从固体三维地质。包括地质编辑器,钻孔和网格/网格管理,向前和逆物理模块,管理和解释你的整个勘探,地热或工程项目。

地质编辑
隐式模型的3D表面的主要地质资料的约束(触点和定位数据)和/或钻孔截取。
坚持以规则为基础的桩的故障网络与关系模型。
钻孔和网格/网格管理
完全支持钻孔和属性数据。
提供一系列的插值方法包括域Kriging(模仿地质形成形状避免联合折叠前的Kriging)。
三维网格/网格计算器。
3D查看器和切片工具。
向前和逆物理模块
利用随机反演技术。

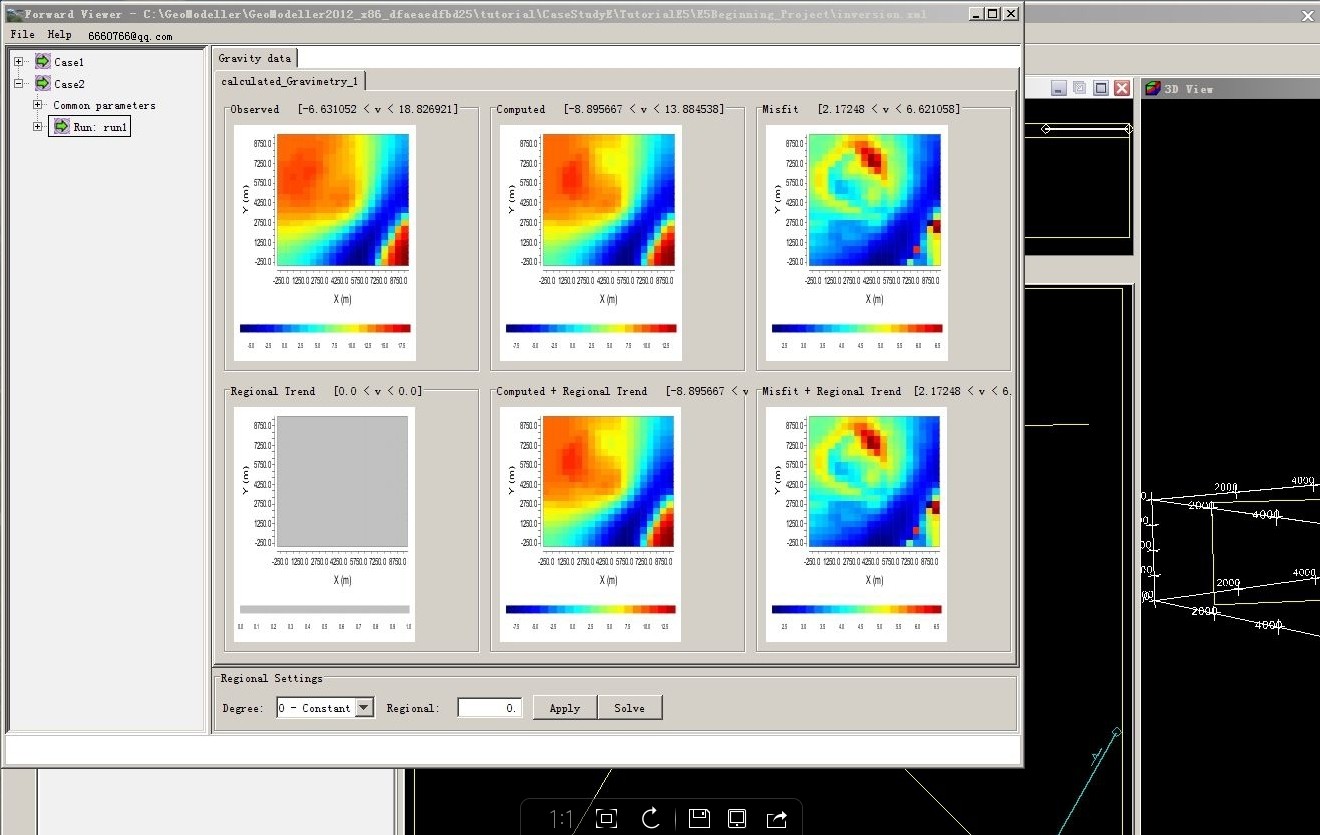

二维剖面模型的重力和磁力和合成地震记录。
三维正演模拟的重力,磁学(包括剩磁),全张量梯度测量(FTG)。
温度的三维正演计算,垂直热流和地温梯度。
三维岩性约束反演重力和磁随机(单独或联合)。
通过综合的图形用户界面和向导驱动。
可以从一开始geomodeller模型建模,或进口的岩性voxet。
处理变量的岩石性质通过查找表(概率分布函数)或自定义voxets。
浏览参考地球物理网格。
综合后的反演产品包括地质几何和岩石性质的量化的不确定性。
Intrepid Geophysics develops software and provides services for potential field geophysics. It has carved out a strong reputation in geophysical processing and interpretation, and software development.

GeoModeller is a software tool for 3D geological modelling. For building complex, steady state, 3D geology models – and performing forward & inverse geophysical modelling directly from solid 3D geology. Comprising a Geological Editor, Drill hole & grids/meshes management, Forward & inverse geophysics modules to manage and interpret your entire exploration, geothermal or engineering project.
Geological Editor
Implicitly models 3D surfaces constrained by primary geological data (contacts & orientation data together) and/or drill hole intercepts.
Adheres to rule-based modelling of fault networks & relationships of the pile.
Drill hole & grids/meshes management
Fully supports drill holes & attributed data.
Offers a range of interpolation methods including domain kriging (to mimic geology formation shape avoiding un-folding prior to kriging).
3D grids/meshes calculator.
3D viewer and slicing tools.
Forward & inverse geophysics modules
Using stochastic inversion techniques.
2D profile modelling of gravity and magnetics and synthetic seismographs.
3D forward modelling of gravity, magnetics (including remanence), full tensor gradiometry (FTG).
3D forward computation of temperature, vertical heat flow & geothermal gradient.
3D litho-constrained stochastic geophysical inversion of gravity and magnetics (separately or jointly).
Driven by comprehensive GUIs & wizards.
Modelling can commence from a GeoModeller model, or an imported lithology voxet.
Handles variable rock properties through look-up tables (probablity distribution functions) or custom voxets.
Browses to reference geophysical grids.
Comprehensive post-inversion products including quantified uncertainty of geology-geometry & rock properties.
