VISTA 2016.000

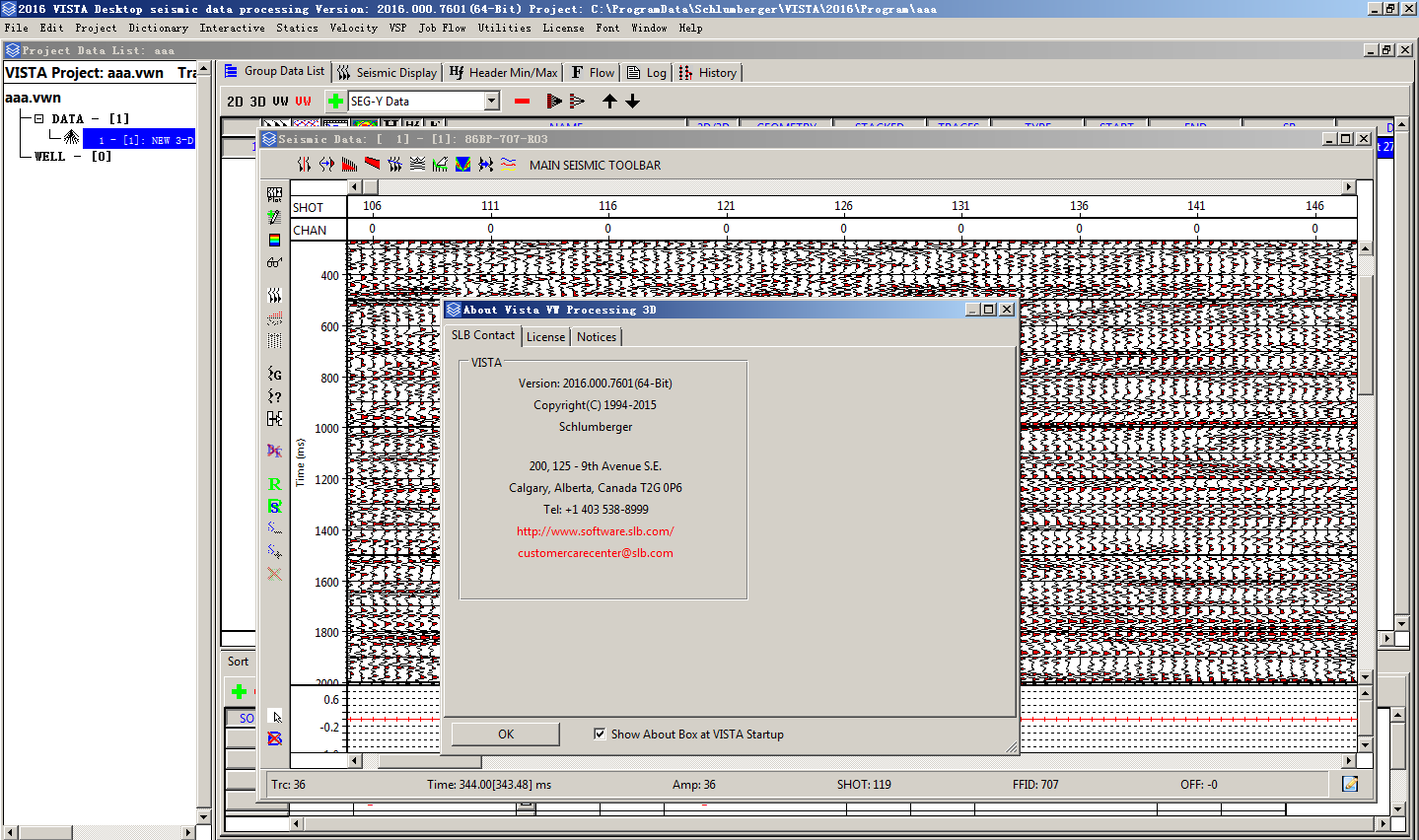

vista2016_goodProduct details

VISTA desktop seismic data processing software is a leading software package for the full range of processing tasks from field QC to complete processing of 2D and 3D seismic data. VISTA software is used around the world to process land, marine, ocean-bottom cable (OBC), and vertical seismic profile (VSP) data. VISTA software is a Windows application available in four packages scaled to meet user needs: 2D and 3D Field QC, 2D and 3D Field Processing, 2D and 3D Full Processing and 2D and 3D VSP. It is flexible, reliable, interactive and easy to use.

VISTA 2D and 3D Field QC is used in the field to perform rapid QC and simple processing up through to brute stack. The VISTA 2D and 3D Field Pro package provides additional tools for today’s more sophisticated QC requirements, including post-stack migration. VISTA 2D and 3D Full Pro offers a complete QC and processing solution, with all of the field capabilities plus post-stack 2D line-tie and 3D data merge, 2D/3D pre-stack time migration, and time and depth image analysis. VISTA 2D and 3D VSP can be used for complete VSP QC and processing.

Key components

  • New Interactive Windows including
    • Interactive Curvelet transform picking window and processing workflow
    • Interactive window for wavelet creation.
    • Interactive window for VSP look ahead algorithm.
  • Users can now define VISTA headers that are contained within VISTA attribute groups.
  • New features for true amplitude processing include amplitude compensation for emergence angle and receiver array response directivity.
  • New options for output and weighting added to Mix 3D command.
  • Added a new flow command for 3D ground roll with extended FK options to help noise attenuate 3D ground roll.
  • Added 2D and 3D Cadzow noise attenuation commands.
  • Added a new noise attenuation command based on Curvelet transform.
  • Added a VSP inversion command to perform smoothed inversion of the VSP travel time first break picks that helps reveal data resolution.
  • Added a VSP spherical divergence compensation command.
  • Added a VSP vertical times and shot elevation statics calculation.
  • Numerous Interactive windows enhancements including:
    • Project data list window – enhancements give users better control of defined datasets and improved QC.
    • Interactive velocity picking features include a new QC stack display with real-time velocity updates, a new attribute window to better visual velocities and make velocity picking easier, a new link to the velocity viewer to see updates and display velocities in real time.
    • Interactive stacking/image picking includes more display options and keyboard/mouse controls as well as new real time dynamic stacking in panel picking.
    • Interactive 2D/3D interferometry statics incorporates residual refraction statics into the interactive window and a spatially variant layer definition for when layer thickness substantially changes.
    • 2D/3D surface consistent statics contains new interactive picking of multiple traces for static correction in addition to numerous enhancements to the stacking process. Also it now links directly to the 2D/3D interferometry statics window to help compute short wave statics.
    • VSP velocity profile window includes new controls, displaying options and editing capabilities, added a new algorithm used to calculate velocity based on inversion of the picks and users can now read LAS log file and display the formation tops in the window.
    • New algorithm added for Q calculation in VSP Q window, also the ability to calculate Q between LAS Log tops.
    • Seismic montage window – added options for displaying multiple log graphs in time or depth and added new plot objects to the creation window.
    • LAS log well editing – added more user interaction for editing and saving LAS logs as well as the ability to merge different logs together.
    • 2D/3D VSP model building and inversion – allow for ray tracing of spatially variable velocity model, a new inversion and tomography calculation and migration / VSPCDP.
    • Flow window – added a new flow multi-step process to allow users to run multiple flow processes from flow or batch window from a user defined sequence.
    • Seismic window – added a new wavelet extraction function to the analysis toolbar list, a real time link into interactive velocity picking, a new velocity field. display control and a new convert velocity function added to recalculate stacking velocities from a different datum.
    • Velocity view includes a real time link into interactive velocity picking and a new 3D split view of inline, crossline, time slice and 3D view of velocities.

For the complete list of VISTA software enhancements, please refer to the VISTA 2016 New Feature Guide.

产品详情

? ? ? ?VISTA桌面地震数据处理软件是一种用于各种处理任务的领先软件包,包括现场QC、完整的2D和3D地震数据处理。VISTA软件的应用遍及世界各地,可处理陆地地震、海洋地震、海底电缆(OBC)地震数据及垂直地震剖面(VSP)数据。VISTA软件是一个窗口应用程序,可分为4个软件包,满足用户需求:2D和3D现场QC、2D和3D现场处理、2D和3D全处理及2D和3D VSP。该软件为交互式,其特点是灵活、可靠且易于使用。
?
? ? ? ?VISTA 2D和3D现场QC用于现场执行快速QC,通过初步叠加进行简单处理。VISTA 2D和3D Field Pro软件包为当今更为复杂的QC需求提供了附加工具,包括叠后偏移。VISTA 2D和3D Full Pro提供完整的QC和处理解决方案,包括所有现场功能及叠后2D记录线和3D数据合并、2D/3D叠前时间偏移、时间和深度图像分析。ISTA 2D和3D VSP可用于完整的VSP QC及处理。
?
主要组成部分
?
  • 新的交互式窗口包括
  • 交互式曲波变换拾取窗口及处理工作流。
  • 交互式子波创建窗口。
  • 交互式先行算法窗口。
  • 用户此时可定义构成VISTA属性组的VISTA标题。
  • 真振幅处理的新特征包括出射角振幅补偿及接收阵列响应方向性。
  • 向Mix 3D命令增添了新的输出和加权选项。
  • 通过扩展的FK选项为3D地滚波增添了新流程命令,有助于3D地滚波的噪声衰减。
  • 增添了2D和3D Cadzow噪声衰减命令。
  • 根据曲波变换增添了新的噪声衰减命令。
  • 增添了VSP反演命令,以执行VSP行程时间初至波拾取的顺利反演,有助于显示数据分解。
  • 增添了VSP球面发散补偿命令。
  • 增添了VSP垂直时间和爆炸高度静校正计算。



众多交互式窗口增强功能包括:
?
  • 项目数据列表窗口 – 增强功能为用户提供更好的定义数据集和改进QC控制。
  • 交互速度拾取功能包括新的QC叠加显示(带实时速度更新)、新的属性窗口(更好的显示视觉速度,从而使速度拾取更容易)、新的速度查看器链接(用以查看更新及实时显示速度)。
  • 交互叠加/图像拾取包括更多显示选项和键盘/鼠标控制,以及面板拾取中的新的实时动态叠加。
  • 交互式2D/3D干涉法静校正将剩余折射静校正并入交互式窗口,可在层厚度大幅变化时采用空间移变层定义。
  • 2D/3D地表一致性静校正包括新的多道交互拾取,用于除叠加过程众多增强功能外的静态修正。此外,它还直接与2D/3D干涉法静态窗口连接,有助于计算短波静校正。
  • VSP速度剖面窗口包括新控制(显示选项和编辑功能),增添了新算法,用于根据拾取反演计算速度,用户此时可读取LAS日志文件并在窗口显示构造顶部。
  • 增添了新算法,用于VSP Q窗口内的Q计算,还增添了计算LAS日志顶部之间的Q的功能。
  • 地震蒙太奇窗口 – 增添了按时间或深度显示多个日志图表的选项,还向创建窗口增添了新的绘图对象。
  • LAS测井编辑 – 增添了更多用户交互功能,用于编辑及保存LAS日志,还增添了合并不同日志的功能。
  • 2D/3D VSP模型建立和模型反演 – 考虑到空间变量速度模型光线跟踪,这是一种新的反演和断层扫描计算及偏移VSPCDP。
  • 流程窗口 – 增添了新的流程多级处理功能,以使用户从流程或批量窗口运行多个流程工艺,从而形成用户定义顺序。
  • 地震窗口 – 向分析工具条列表增添了新的子波提取功能,包括交互速度拾取实时链接、新的速度场显示控制及新的转换速度功能,以通过不同数据重新计算叠加速度。
  • 速度视图包括交互速度拾取实时链接和新的3D分割视图(内联、交联、时间片)和3D速度视图。
